GAMMA - High performance combined heating and cooling (coil) air handling units
|
|
Heating output |
Cooling output |
Air |
External SP |
Electrical |
Noise level |
|
|
kw |
kCal |
kw |
kCal |
m3/s |
m/s |
Pa |
V-ph-Hz |
dBA |
|
Gamma 35 |
60 |
51,600 |
35 |
30,100 |
2.78 |
3.19 |
300 |
415-3-50 |
63 |
|
Gamma 80 |
135 |
116,100 |
80 |
68,800 |
3.50 |
3.32 |
300 |
415-3-50 |
65 |
|
Gamma 150 |
255 |
219,300 |
150 |
129,000 |
5.50 |
3.13 |
300 |
415-3-50 |
72 |
|
Gamma 300 |
510 |
438,600 |
300 |
258,000 |
11.0 |
2.75 |
300 |
415-3-50 |
71 |
|
Gamma 450 |
750 |
645,000 |
450 |
387,000 |
16.70 |
3.13 |
300 |
415-3-50 |
72 |
|
|

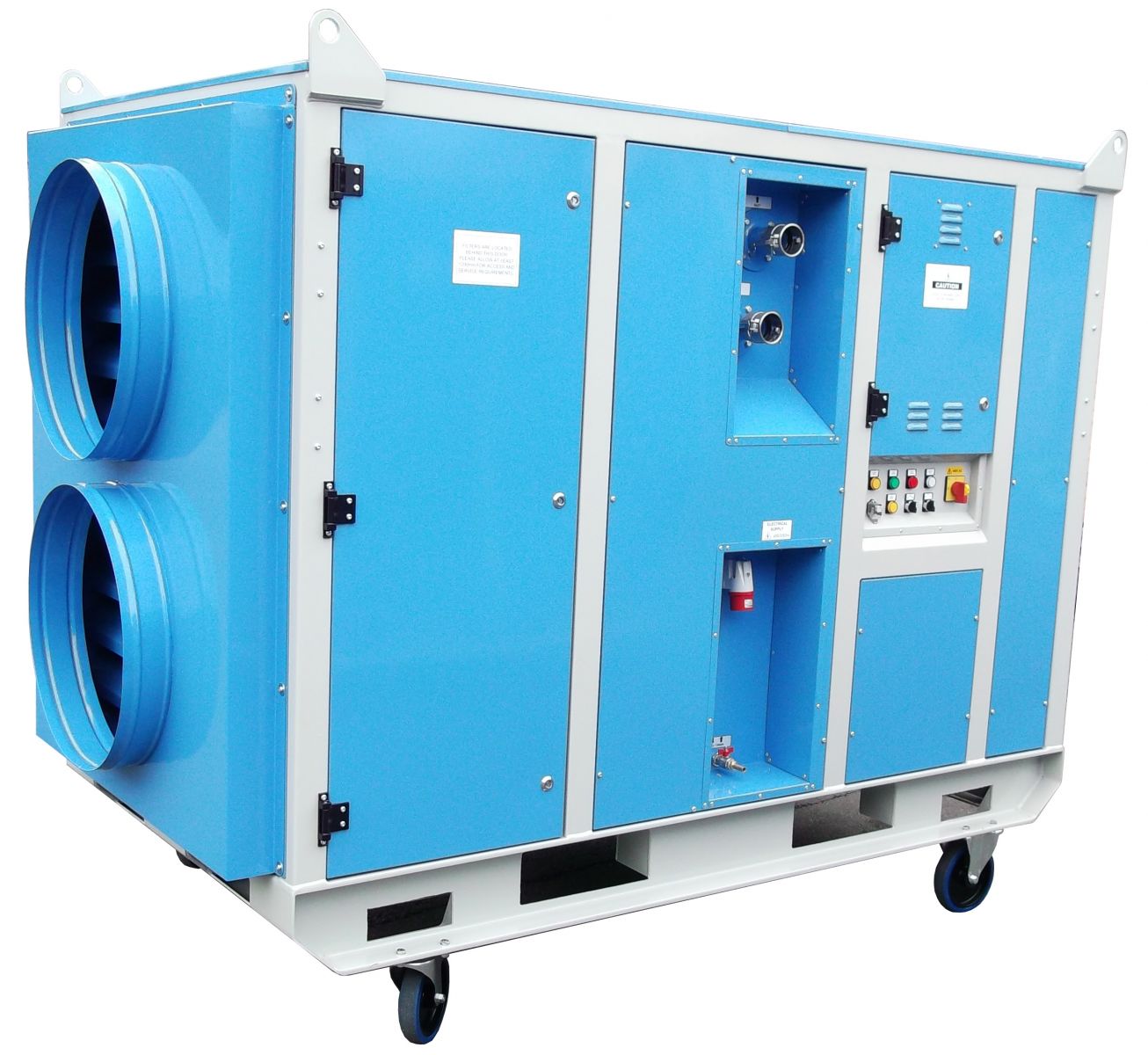

The Gamma Range was originally developed for use with the Beta Range of boiler houses to provide warm air heating, but they can also be used as cooling coils. In common with the Alpha and Beta ranges the higher duty units in the Gamma range use a fully welded rigid and immensely strong chassis design with flush fitting insulated doors and removable panels, to provide a very strong, robust, and extremely durable and weatherproof product.
Models with lower duties feature a rigid welded steel base frame and a construction using extruded aluminium section with flush fitting insulated panels.
Again, like all our products each Gamma unit is hand built to the highest standards, and is designed to withstand rigorous and prolonged use within the hire industry. Each Gamma unit is fitted with four-way FLT pockets, lifting eyes, and is also designed to be stackable when not in use.
Controls, outer panels, and external paint finishes can also be detailed by the customer, with specifications to suit customer and application requirements.
Typical heating and cooling applications for the Gamma Range include the following: construction sites, outdoor events and marquees, temporary storage facilities, warehousing, plant and building refurbishment, process heating and cooling, ship building and refitting, garages, workshops, factories, temporary heating and cooling within industrial and commercial units, agriculture, in theatre military uses, and very many more…
|
